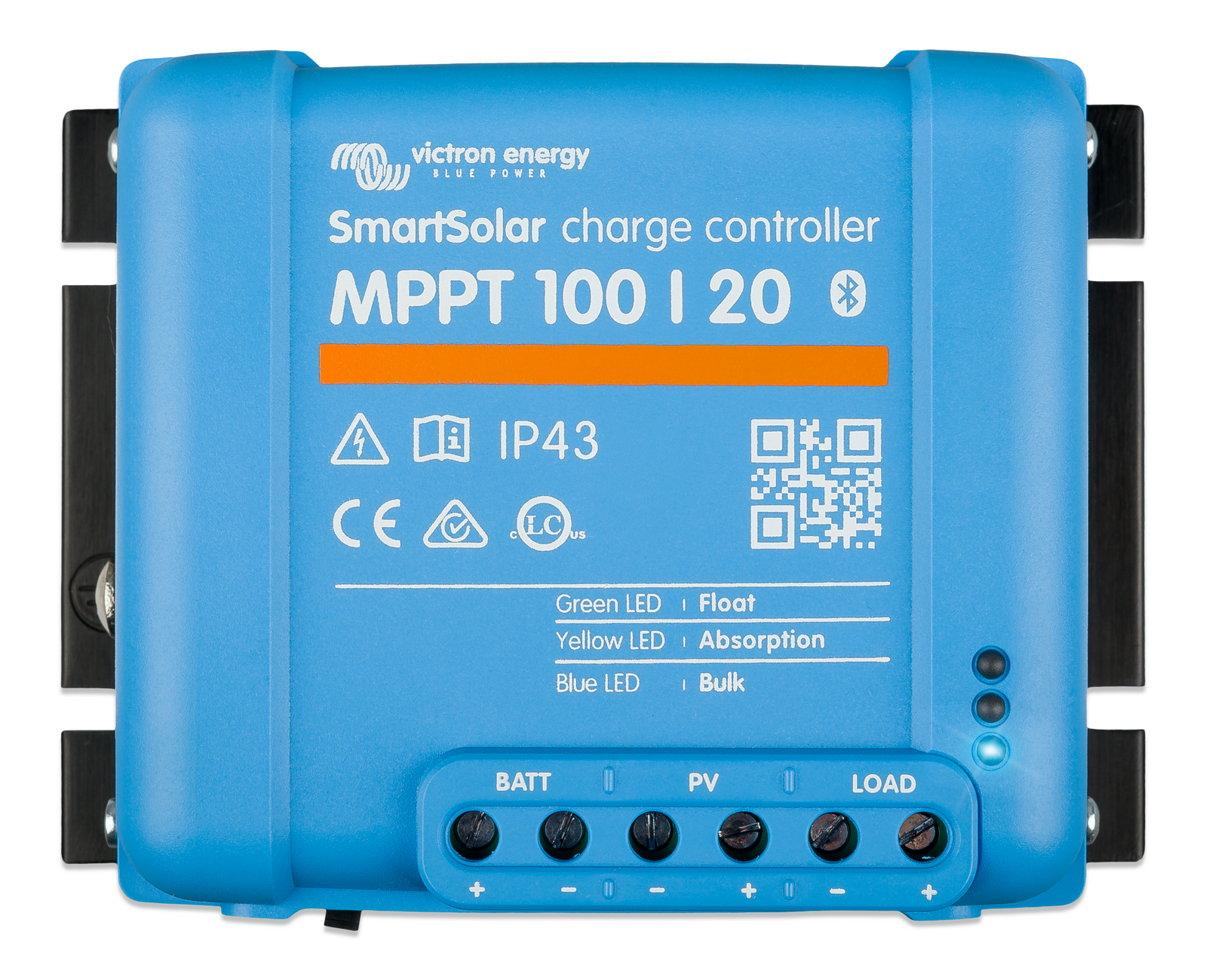

Victron Energy SmartSolar MPPT 100/20 (up to 48V)
SKU: 8719076043027
Victron Energy SmartSolar Charge Controllers MPPT 100/20 - 12/24/48V 20A with Load Output and Bluetooth
The ultimate solution for efficient and intelligent battery charging, designed to harness the power of the sun and keep your energy source optimized. Whether you're using 12V, 24V, or 48V lead-acid or LiFeP04 batteries, this controller is your key to unlocking the full potential of your solar panels, even in less-than-ideal conditions.
At the heart of this innovation is an ultra-fast MPPT (Maximum Power Point Tracking) controller, which constantly adapts to extract the maximum energy from your solar panels. This means you can enjoy charging currents of up to 15A, ensuring your batteries are topped up quickly and efficiently.
Our controller features a flexible and programmable battery management system with innovative tracking algorithms, so you can customize your charging process to meet your specific needs. It provides a 3-stage battery charging approach, encompassing bulk, absorption, and float phases. This ensures that your battery charges swiftly and is maintained in optimal condition. You have the flexibility to choose from 8 preset charge algorithms or design your own, allowing for complete customization to suit your unique application. Additionally, you can enable equalization or BatteryLife modes to extend the lifespan of your battery.
To safeguard your battery and connected devices, this charge controller boasts a DC load output port that automatically disconnects devices when the voltage reaches a pre-determined level. This feature helps prevent over-discharging and protects your valuable equipment.
The convenience of our Solar Charge Controller extends beyond its advanced charging capabilities. With Bluetooth® connectivity, you can easily configure and monitor the controller from your smartphone, tablet, or computer. View real-time and historical solar and battery data, ensuring you're always in control.
Safety is paramount, and our Solar Charge Controller is equipped with a range of protective features. It includes safeguards against over-current, over-temperature, over-voltage, reverse battery or PV polarity, and output short circuit protection.
Key Features:
- Supports Lead-acid and LiFeP04 Batteries
- Ultra-fast MPPT controller
- Fully Programmable Battery Charge Algorithm
- Bluetooth® enabled for App control
Specifications:
- Battery Voltage: 12/24V/48V (auto-select)
- Rated Charge Current: 15A
- Nominal PV Power: 220W/12V, 440W/24V
- PV Short Circuit Current: 15A max.
- PV Open Circuit Voltage: 75V max.
- Peak Efficiency: 98%
- Charge Voltage:
- Absorption: 14.4V/28.8V (adjustable)
- Float: 13.8V/27.6V (adjustable)
- Continuous Load Current: 20
- Low Voltage Load Disconnect: 11.1V/22.2V or 11.8V/23.6V or Battery Life Algorithm
- Low Voltage Load Reconnect: 13.1V/26.2V or 14V/28V or Battery Life Algorithm
- Screw Terminals: 6mm2 (AWG10)
Upgrade your solar charging system with our Solar Charge Controller and experience the ultimate in efficiency, flexibility, and control. Harness the power of the sun like never before and keep your energy source optimized for all your needs.
SKU | 8719076043027 |
Brand | Victron Energy |
