Powertech 12V 160W Folding Solar Panel with 5M Lead

SKU: ZM9178

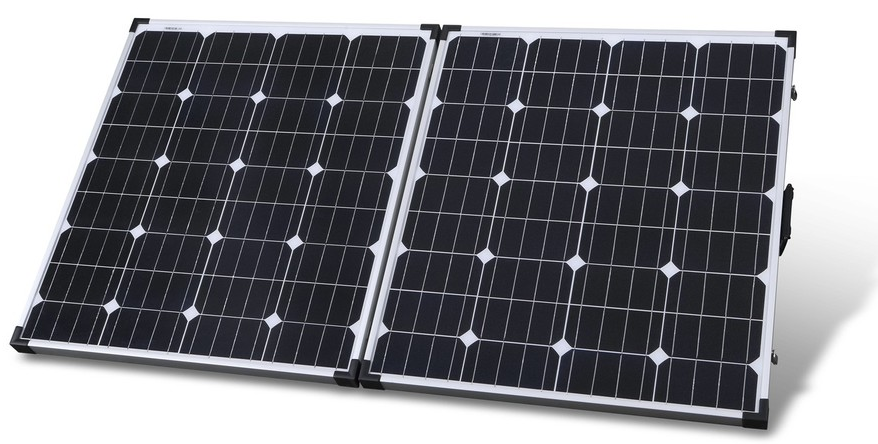

Powertech 12V 160W Folding Solar Panel with 5M Lead

If you're hungry for power yet looking out for a portable power solution, the Powertech 12V 160W Folding Solar Panel is the answer! A comprehensive solar power system made with top grade monocrystalline solar cells, this unit will bail you from most power crisis. This product includes two 80 Watt Monocrystalline Solar Panels, one 10 Amp PWM solar Charge Controller with LED indicators for power regulation and USB port, 5m extension lead with genuine Anderson connectors, additional extension leads (Anderson to eye terminals and Anderson to Alligator Clips) for easy connections and a heavy duty bag for safe portability. If you are looking for a portable solar solution with fast and easy installation then this the perfect kit for you! Equipped with a carrying handle, durable fold out legs that allow for varying degrees of tilt and industry standard latches this is the ultimate solution!

Features:

- Adjustable, corrosion-resistant aluminium stand and frame with heavy duty handle and latches for longevity

- 12V 10A PWM Solar charge controller compatible with gel, sealed, and flooded batteries

- Portability with Easy carry case

- Excellent value with various types of Battery leads (Eye terminals, Alligator clips, Anderson) provided

Specifications:

Type: Mono Crystalline Solar Cells

Peak Power: 160W

Rated Voltage: 12V

Voltage @ Peak Power: 18.0V

Current @ Peak Power: 8.88A

Open Circuit Voltage: 22.30V

Short Circuit Current: 9.19A

Panel Dimensions: 1335(W) x 759(H) x 35(D)mm (open)

665(W) x 759(H) x 75(D)mm (closed)

Gross Weight: 15.5 kgs

Internal or Sub-part Dimensions

Length	665mm
Width	759mm
Height	75mm

RTM Historical References

Previously Sold As

TES318

Product Dimensions

Width	1335mm
Height	759mm
Depth	35mm
Weight	15.5kg

Solar Panel

Open Circuit Voltage	22.3V
Mounting Method	Folding Portable
Solar panel type	Monocrystalline
Short Circuit Current	9.19A
Mounting Material	aluminium
Voltage at Power Max	18V
Current at Power Max	8.88A
