BP35GAUSR Power Management System

SKU: BP35IIGAUSR

BP35GAUSR Power Management System

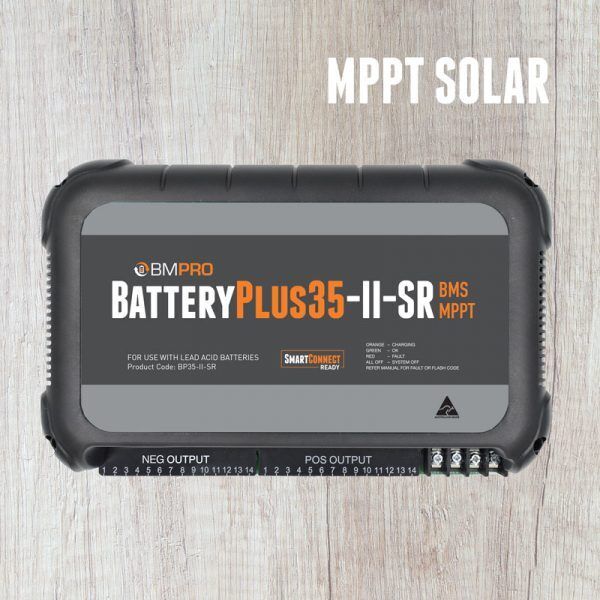

BatteryPlus35-II-SR is a complete solar battery management system designed specifically for recreational vehicle applications. This all in one power solution combines a 35A power supply for 12V loads, 20A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features.

Connect solar panels to the solar battery management system and power your adventures with renewable energy.

BatteryPlus35-II-SR is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power ? great for powered sites.

The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.

FEATURES

Total output current 35A
20A multistage battery charger
Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
Electronic resettable fuses
CAN bus connection for BMPRO accessories
In-built battery management system
Solar and Aux Blending
Auxiliary DC input
Load current limit
Low voltage disconnect
Compatible with AGM, Wet, Gel deep cycle batteries

SPECIFICATIONS

Input Voltage Range 110-240V AC ± 10%, 50-60Hz
Output Current 35A (Load + Batter y Current)
Factory Set Voltage 13.65V (Float Voltage)
Output Ripple Voltage <150mV
Battery Current Limit max. 20A
Low Voltage Disconnect 10.5V ± 0.2V
Battery Connect after LVD 12.8V ± 0.2V
Battery Drain <15mA (when in Storage Mode)
AC/DC Efficiency >83%
Cooling Fan Thermally Controlled
Solar Output Current 30A (nominal)
Solar Start Voltage 17.5V
Solar Input Voltage (after start-up) 15-25V
Ambient Temperature 0-50 °C
Communication Communication bus available
Weight 2kg
