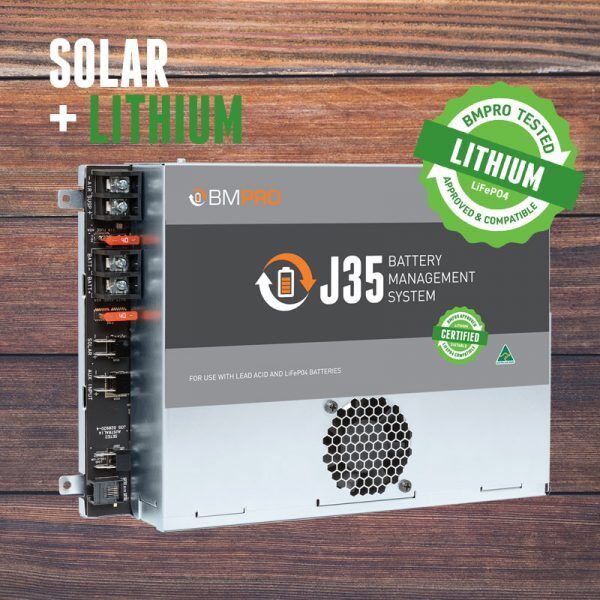

BMPRO J35 - D Power Management System

SKU: J35D

BMPRO J35 - D Power Management System

Introducing the BMPRO J35-D Power Management System—a versatile and advanced solution designed to optimize your caravan's power setup. With its cutting-edge features and robust design, the J35-D ensures reliable power management for all your adventures.

Compatible with both lead-acid and lithium (LiFePO4) batteries, the J35-D offers unparalleled flexibility. Charge battery banks of up to 600Ah capacity effortlessly, whether you're connected to mains power (230-240 Volt), utilizing solar panels (up to 28 Amp), or tapping into auxiliary inputs like power generators or your vehicle.

Experience peace of mind knowing that the J35-D is equipped with multiple battery protection features, including low voltage disconnect, storage mode, and multistage charging. These safeguards not only enhance battery lifespan but also ensure optimal performance under various conditions.

With 14 outputs for connecting DC appliances such as hot water systems, water pumps, lights, and more, the J35-D empowers you to customize your caravan's power distribution to suit your needs. Electronic fuses built into the system protect your loads, providing added safety and reliability.

Features:

14 x 12VDC Outputs: Customize your power distribution with ample connectivity options.
35A Maximum Output Current: Power multiple appliances simultaneously with ease.
30A Maximum Charging Current: Efficiently charge your batteries for uninterrupted power.
Solar 28 Amp: Harness the sun's energy for sustainable power generation.
Lithium (LiFePO4) Compatible: Enjoy compatibility with advanced lithium battery technology.

Designed to meet the demands of modern adventurers, the BMPRO J35-D Power Management System combines reliability, versatility, and performance in one compact package. Whether you're embarking on a weekend getaway or an extended road trip, trust the J35-D to keep your caravan powered and ready for the journey ahead.

SPECIFICATIONS

Input Voltage Range: 240 VAC nominal, ± 10%, 50-60 Hz
Input Surge: < 40 A (cold start)
Output Current: 35A Continuous (load + battery current)

Factory Set Voltage: 13.65 V ±2% (Float voltage)
Output Ripple Voltage: < 150 mV
Over Voltage Protection: < 18 V
Over Current Protection: 35A to 38A (load + battery current)
Battery Current Limit: 30A max
Battery Connect: 10.8 ± 0.2 V
Low Voltage Disconnect: 10.8 ± 0.2 V for lead acid, 12.0 ± 0.2 V for LiFePO4 batteries
Battery Drain after LVD: < 7mA
Efficiency: > 83 %
Cooling Fan: Thermally controlled
Ambient: 0°C – 50°C
Communication: CAN bus
Weight: 2 kg
