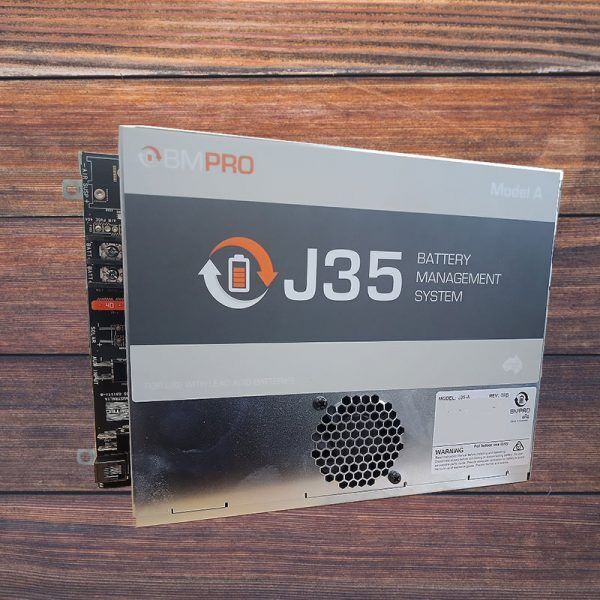

BMPRO J35 - A Power Management System
SKU: J35A
J35 - A Power Management System
J35 Model A is a 12V battery management system with a multi-stage battery charger, with total current of 20 Amp.
With J35A, you can charge your battery to the optimal charge level from AC mains or from Auxiliary (DC or vehicle power). A maximum DC charging current is 15 Amp.
J35A preserves the health of the battery by inhibiting it from getting overly discharged.
Other protection and operating features keeping your battery healthy include: thermal protection, over-current, over-voltage, multi-stage charging, low-voltage disconnect. There?s no need for external fuses thanks to the built in electronic fuses protecting the loads. There are seven outputs to connect your DC appliances.
KEY FEATURES
- 7 x 12VDC outputs
- 20A maximum output current
PRODUCT SPECIFICATIONS
Input Voltage Range: 240 VAC nominal, ± 10%, 50-60 Hz
Input Surge: < 40 A (cold start)
Output Current: 20A Continuous (load + battery current)
Factory Set Voltage: 13.65 V ±2% (Float voltage)
Output Ripple Voltage: < 150 mV
Over Voltage Protection: < 18 V
Over Current Protection: 20A to 25A (load + battery current)
Battery Current Limit: 15A max
Battery Connect: 10.8 ± 0.2 V
Low Voltage Disconnect: 10.8 ± 0.2 V
Battery Drain after LVD: < 8mA
Efficiency: > 83 %
Cooling Fan: Thermally controlled
Ambient: 0°C – 50°C
Weight: 2 kg
| SKU | J35A |
| Brand | BMPRO |
