BMPRO BP35GAUPM Power Management System

SKU: 0766619113011

BP35GAUPM Power Management System

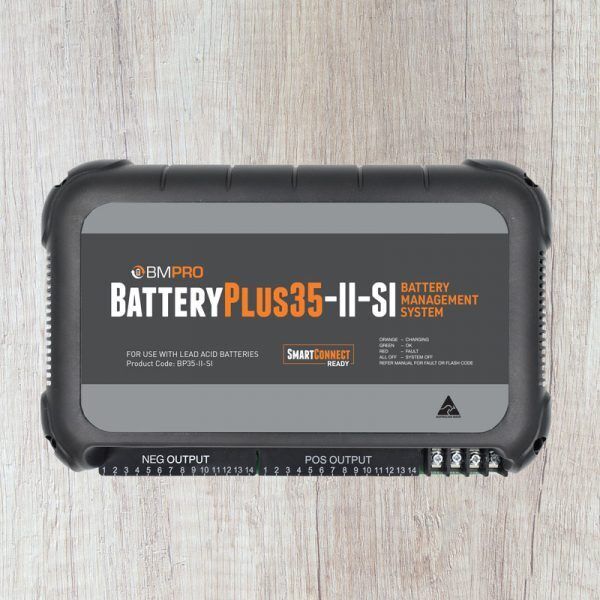

BatteryPlus35-II-SI is a complete battery management system designed specifically for recreational vehicle applications. This all in one power solution combines a 35A power supply for 12V loads, 20A multi-stage AC charging and 20A Solar PWM regulation as well as a host of battery protection features

BatteryPlus35-II-SI is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power ? great for powered sites.

The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A

FEATURES

Total output current 35A
20A multistage battery charger
Inbuilt solar PWM regulator (240W, 20A, 25V max input)
Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
Electronic resettable fuses
CAN bus connection for BMPRO accessories
In-built battery management system
Solar and Aux Blending
Auxiliary DC input
Load current limit
Low voltage disconnect
Compatible with AGM, Wet, Gel deep cycle batteries

SPECIFICATIONS

Input Voltage Range 110-240V AC ± 10%, 50-60Hz
Output Current 35A (Load + Battery Current)
Factory Set Voltage 13.65V (Float Voltage)
Output Ripple Voltage <150mV
Battery Current Limit max. 20A
Low Voltage Disconnect 10.5V ± 0.2V
Battery Connect after LVD 12.8V ± 0.2V
Battery Drain <15mA (when in Storage Mode)
AC/DC Efficiency >83%
Cooling Fan Thermally Controlled
Ambient Temperature 0-50 °C
Communication Communication bus available
Weight 2kg
