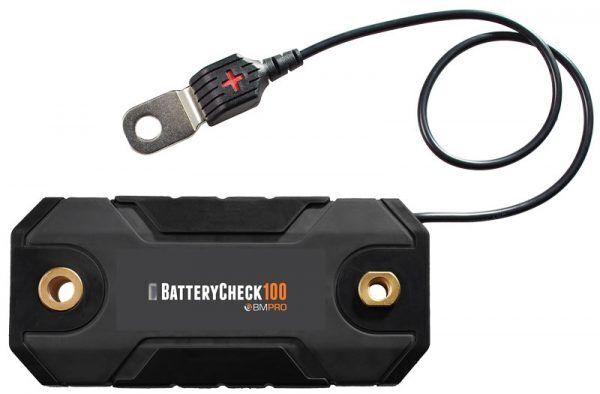

BMPRO BatteryCheck 100

SKU: 735850008318

BatteryCheck100 - Advanced 12V Battery Monitoring for Recreational Vehicles

Enhance your battery management with the BatteryCheck100, a cutting-edge 12V battery monitor designed specifically for deep cycle batteries in recreational vehicles. Equipped with the latest Bluetooth LE technology, this device allows you to monitor your battery’s health and performance directly from your smartphone using the BatteryCheck100+PRO app, available on both Google Play and the App Store.

Key Features:

Real-Time Monitoring: Get instant access to crucial battery data including voltage, temperature, charge/discharge current, state of charge (SoC), state of health (SoH), and estimated discharge time.
User-Friendly App: The highly intuitive app provides clear and comprehensive battery information, enabling you to make informed decisions about your battery usage and maintenance.
Wide Compatibility: Suitable for a range of standard 12V deep cycle batteries, the BatteryCheck100 supports monitoring up to 100A of maximum charge or discharge.
Easy Installation: Mounts directly on the battery and connects via Bluetooth for hassle-free setup and monitoring.
Not for Cranking Applications: Designed for deep cycle batteries, the BatteryCheck100 is not intended for engine starting or use under vehicle bonnets.

Specifications:

Input Voltage: 8V - 16V
Voltage Measurement Range: 8V - 16V with a resolution of <20mV
Current Consumption: 10mA peak
Current Measurement Range: ± 100A (continuous rating ± 80A) with a resolution of <20mA
Operating Temperature: -20°C to 70°C
Temperature Measurement Range: -20°C to 70°C with a resolution of 1°C
Monitored Battery Capacity: 7-800Ah
Humidity: ≤ 85% RH operating, ≤ 95% RH non-operating
Dimensions: 140mm x 65mm x 20mm
Weight: Approx. 520g
IP Rating: IP54 for reliable performance in various environmental conditions

With the BatteryCheck100, you can travel with confidence, knowing your battery is in optimal condition and ready for your next adventure

SPECIFICATIONS

Input Voltage Range 8V to 16V
Voltage Measurement Resolution <20mV
Continuous Current Rating 80A
Current Measurement Range 100A
Current Measurement Resolution <20mA
Overload Protection (100ms w/out damage) 300A
Monitored Battery Capacity 7Ah to 800Ah
Temperature Measurement Range -20 °C to 70 °C (at Battery Terminal)
Temperature Measurement Resolution 1 °C
Dimensions 140mm x 65mm x 18.6mm
Weight 520g
