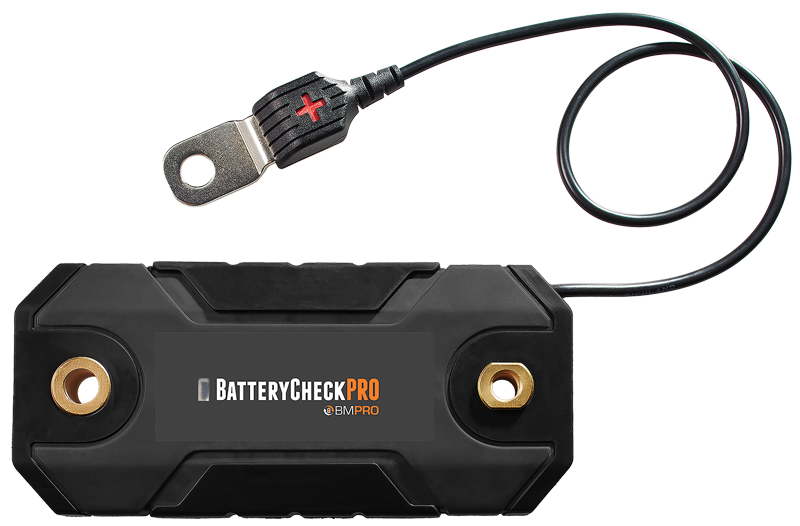

BMPRO BatteryCheck Pro

SKU: 9358381000104

BMPRO BatteryCheckPRO: Advanced Wireless Battery Monitoring for 12V Systems

Take control of your 12V battery system with the BatteryCheckPRO, a state-of-the-art wireless battery monitor designed specifically for recreational vehicles. Whether you're powering high-demand devices like microwaves and inverters or simply need reliable monitoring, BatteryCheckPRO provides real-time insights into your battery's health and performance.

Key Features:

Comprehensive Monitoring: Track crucial battery parameters including Voltage, Temperature, Charge/Discharge Current, State of Charge (SoC), State of Health (SoH), and Estimated Discharge Time Remaining.
Bluetooth Connectivity: Monitor your battery effortlessly via smartphone using the latest Bluetooth LE technology. The intuitive app allows you to customize settings and view real-time data.
Broad Compatibility: Compatible with both lead-acid and lithium (LiFePO4) deep cycle batteries, making it versatile for various applications.
High Current Capability: Handles up to 300A of maximum charge or discharge, ideal for high-current requirements beyond 100A.
User-Friendly App: The BatteryCheckPRO app, available on Google Play and the App Store, offers an easy setup and intuitive interface to monitor and manage your battery.
Robust Design: Engineered for recreational vehicles, marine applications, and Ute tray setups, the BatteryCheckPRO is built to withstand demanding environments, although it is not intended for engine cranking or under-bonnet use.
Precision and Reliability: Measures voltage with a resolution of <20mV and current with a resolution of <150mA, ensuring accurate and reliable monitoring.

Specifications:

Input Voltage: 8V - 16V
Voltage Measurement Range: 8V - 16V
Current Consumption: 10mA peak
Current Measurement Range: ± 300A
Continuous Current Rating: ± 240A
Operating Temperature: -20°C to 70°C
Monitored Battery Capacity: 7-800Ah
Humidity: ≤ 85% RH operating, ≤ 95% RH non-operating
Dimensions: 140mm x 65mm x 20mm
Weight: Approx. 520g
Installation: Mounted on battery
IP Rating: IP54

SPECIFICATIONS

Input Voltage Range 8V to 16V
Voltage Measurement Resolution <20mV
Continuous Current Rating 80A
Current Measurement Range 100A
Current Measurement Resolution <20mA
Overload Protection (100ms w/out damage) 300A
Monitored Battery Capacity 7Ah to 800Ah
Temperature Measurement Range -20 °C to 70 °C (at Battery Terminal)
Temperature Measurement Resolution 1 °C
Dimensions 140mm x 65mm x 18.6mm
Weight 520g
