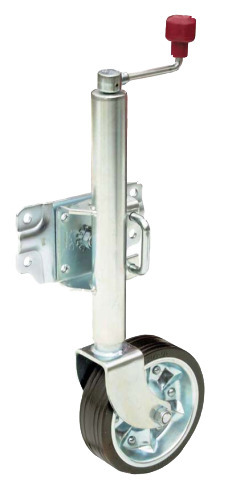

AL-KO 8" Swivel Jockey Wheel 200mm - Solid Tyre

SKU: 628200XP3

AL-KO 8" Swivel Jockey Wheel 200mm - Solid Tyre

Introducing the AL-KO 8" Swivel Jockey Wheel with a robust 200mm solid tyre—a reliable companion for effortless maneuvering and optimal support during your towing adventures. This standard-height jockey wheel boasts a large swivel bracket, ensuring superior stability and functionality.

Crafted with precision, the zinc-coated 48mm diameter shaft offers lasting protection against the elements. With a maximum extension of 250mm and a lift range of 310mm to 560mm from the ground to the center of the drawbar, this jockey wheel is engineered for versatility and convenience.

Specifications:

Wheel Size (D): 200mm diameter
Mounting: Swivel
Static Capacity: 400 kg
Tube O.D.: 48mm
Closed H1: 570mm
Open H2: 820mm
Closed G1: 305mm
Open G2: 522mm
U1, U2, U3: 63mm, 113mm, 88mm
W: 185mm
Weight: 8.5 kg

Features:

Swivel Bracket: Allows the jockey wheel to stay permanently attached for convenience and ease of use.
Simple Swing Away Action: Effortlessly swing away the jockey wheel during travel, ensuring a smooth towing experience.
200mm (8") Solid Tyre: A sturdy and durable solid tyre that provides reliability on various terrains.
Zinc Coated: The zinc coating offers long-lasting protection, enhancing the wheel's durability and resistance to corrosion.

Specifications:

Static Capacity: 400kg
Wheel Size: 200mm (8") solid tyre
Max Lift/Extension: 250mm
Overall Shaft Height Open: 820mm
Overall Shaft Height Closed: 570mm
Weight: 8.5kg

Upgrade your towing setup with the AL-KO 8" Swivel Jockey Wheel, a dependable choice for stability, durability, and ease of use on your towing adventures.
