AL-KO 10" Swivel Jockey Wheel 200mm - Solid Tyre
SKU: 9320570236618

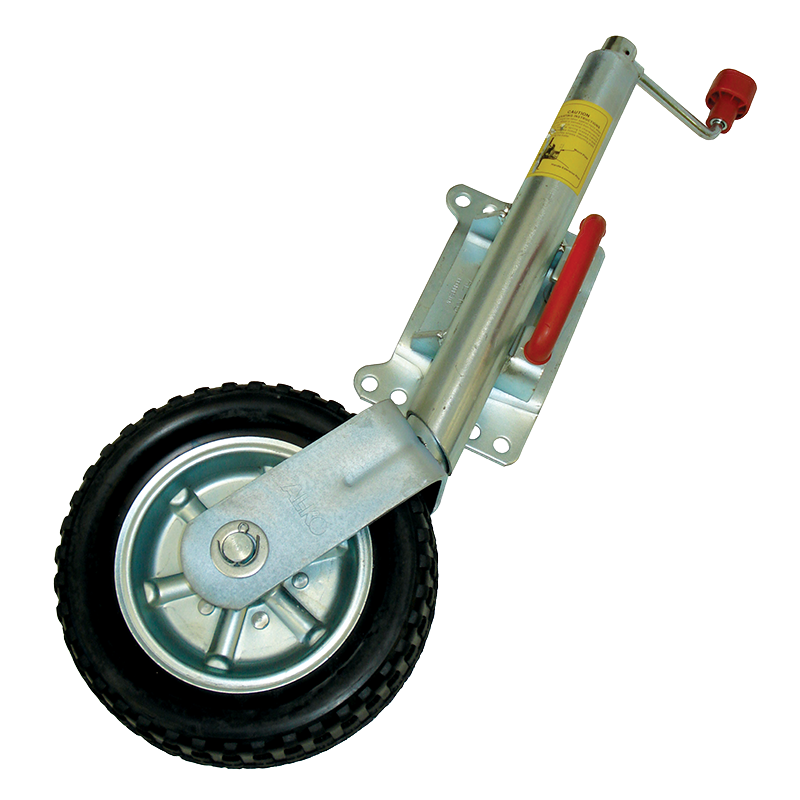

ALKO 10" Swing Up Jockey Wheel
Introducing the ALKO 10" Swing Up Jockey Wheel, an essential accessory for effortless maneuvering and hitching of trailers, caravans, and more. Boasting a standard height design, this jockey wheel features a large swivel bracket and a robust 250mm (10") solid tire, providing stability and reliability on various terrains.
Crafted with durability in mind, the zinc-coated 48mm diameter shaft ensures long-lasting performance, while offering a maximum extension of 250mm. With a lift range spanning from 320mm to 570mm between the ground and the center of the drawbar, you have ample clearance and height adjustment options to suit your towing setup.
Equipped with a swivel mounting system, this jockey wheel stays permanently attached for convenience, allowing for a simple swing-away action when not in use. The angled tube design prevents rotation when stowed, ensuring secure and hassle-free storage during travel.
Specifications:
- Wheel Size (D): 200mm dia.
- Mounting: Swivel
- Static Capacity: 400 kg
- Tube O.D.: 48mm
- Closed H1: 630mm
- Open H2: 880mm
- Closed G1: 320mm
- Open G2: 570mm
- U1, U2, U3: 63mm, 113mm, 88mm
- W: 185mm
- Weight: 11 kg
With its user-friendly features and sturdy construction, the ALKO 10" Swing Up Jockey Wheel ensures hassle-free towing experiences, making it an indispensable companion for your journeys.
SPECIFICATIONS
Static Capacity - 400kg
Wheel Size - 250mm (10") solid tyre
Max Lift / extension - 250mm
Overall Shaft Height Open - 880mm
Overall Shaft Height Closed - 630mm
Weight - 11kg
SKU | 9320570236618 |
Brand | AL-KO |
1 YEAR WARRANTY
