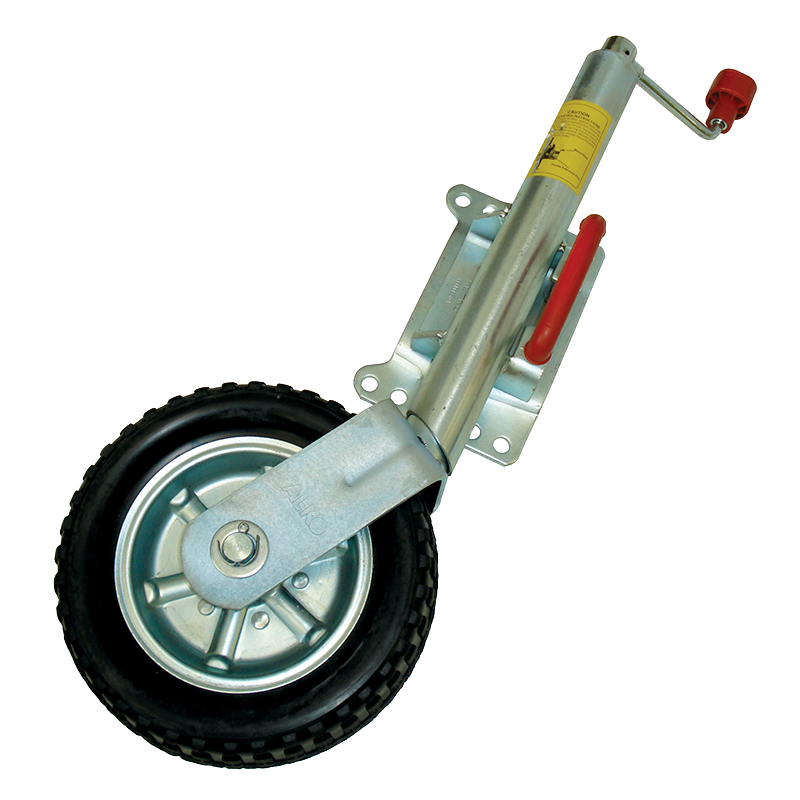

ALKO 10" Swing Up Jockey Wheel

SKU: 623660XP3

ALKO 10" Swing Up Jockey Wheel

Introducing the ALKO 10" Swing Up Jockey Wheel, an essential accessory for effortless maneuvering and hitching of trailers, caravans, and more. Boasting a standard height design, this jockey wheel features a large swivel bracket and a robust 250mm (10") solid tire, providing stability and reliability on various terrains.

Crafted with durability in mind, the zinc-coated 48mm diameter shaft ensures long-lasting performance, while offering a maximum extension of 250mm. With a lift range spanning from 320mm to 570mm between the ground and the center of the drawbar, you have ample clearance and height adjustment options to suit your towing setup.

Equipped with a swivel mounting system, this jockey wheel stays permanently attached for convenience, allowing for a simple swing-away action when not in use. The angled tube design prevents rotation when stowed, ensuring secure and hassle-free storage during travel.

Specifications:

Wheel Size (D): 200mm dia.
Mounting: Swivel
Static Capacity: 400 kg
Tube O.D.: 48mm
Closed H1: 630mm
Open H2: 880mm
Closed G1: 320mm
Open G2: 570mm
U1, U2, U3: 63mm, 113mm, 88mm
W: 185mm
Weight: 11 kg

With its user-friendly features and sturdy construction, the ALKO 10" Swing Up Jockey Wheel ensures hassle-free towing experiences, making it an indispensable companion for your journeys.

SPECIFICATIONS

Static Capacity - 400kg

Wheel Size - 250mm (10") solid tyre

Max Lift / extension - 250mm

Overall Shaft Height Open - 880mm

Overall Shaft Height Closed - 630mm

Weight - 11kg
