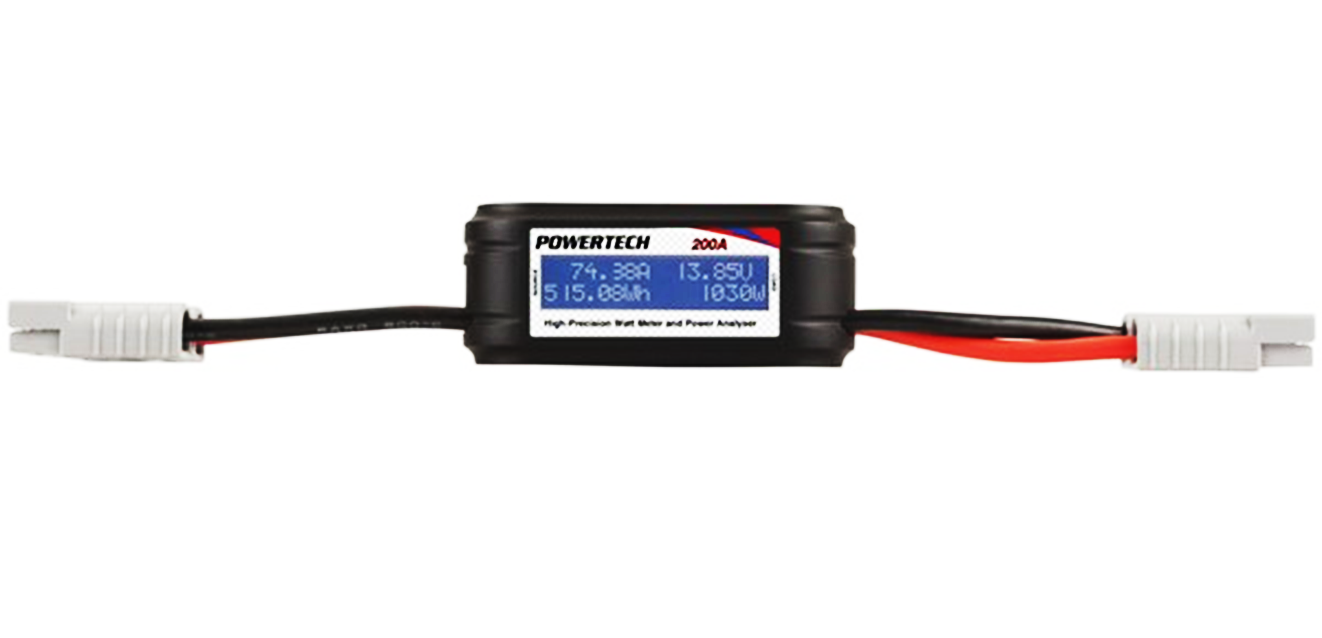

200A DC Power Meter with Anderson Connectors

SKU: 9319236735367

POWERTECH

DIGITAL 200A

DC POWER METER

This exceptional trouble shooting device is not just a watt meter it is an All-in-one power meter, volt meter, amp-hour meter, ammeter and energy meter. It?s designed for systems less than 60V and currents up to 200A (Peak). This genius device comes with Anderson connectors on both source and load end which makes it an easy fit into most high current DC set ups. It can check charge going to a battery from battery charger or alternator, solar panel output, charge controller output, health and performance of batteries, evaluate charging efficiency or measure power and energy consumption of any load device with a battery. The Watt Meter only requires a tiny 7mA draw to operate making little difference to power production during usage. Ideal for cars, boats, caravans, off-grid installations, Wind, solar installations, and so much more.

Specifications
Width : 110.0mm
Height : 45.0mm
Depth : 26.0mm
Weight : 150.0g

SKU	9319236735367
Brand	Powertech

2 Year warranty

Features:
Anderson type 50-Amp connectors
75A continuous / 200A Peak
Up to 60VDC compatibility
Accurate amps, volts, watts, amp-hours, watt-hours, peak amps, minimum volts (sag), peak watts
Reads: 6V - 60V (0V - 60V with optional auxiliary battery).
Measures:
Current - 0-200A @ 0.01A Resolution
Voltage - 0-60VDC @ 0.01V Resolution
Power - 0-6554W @ 0.1W Resolution
Watt Hours - 0-650kWh @ 0.1Wh Resolution
Ampere Hours - 0-6554Ah @ 0.01Ah Resolution
Cable: 8AWG
