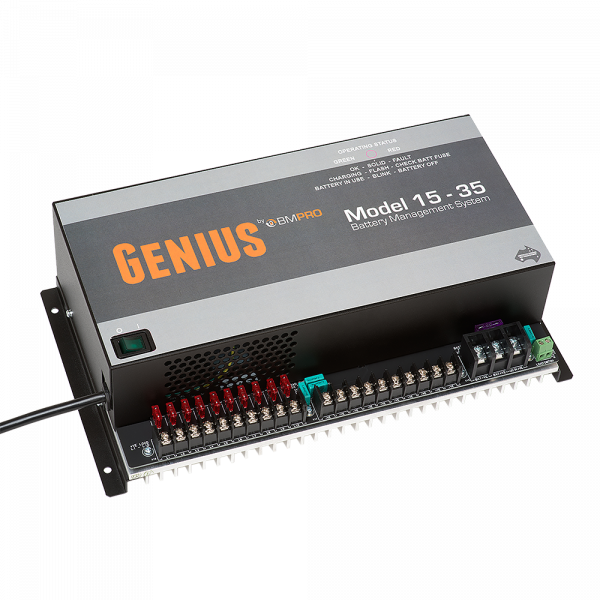

BMPRO Genius-II - A Power Supply

SKU: GENIUS11A

Genius-II - A Power Supply

The Genius is a revolutionary caravan battery management system, offering complete power solution for RV applications. Designed and manufactured in Australia, the slim and sturdy Genius is fully equipped to charge the current generation of deep cycle batteries.

To ensure that batteries are optimally charged and ready to use, the Genius has enhanced management capabilities such as boost charge, float charge, store charge and trickle charge modes. To ensure problem free charging, this device can also accept charge through an optional DC input.

The Genius has a range of battery protection features. They include reverse battery protection, battery current limit, over voltage protection, voltage current limit and fuse protection. The low voltage disconnect facility protects the battery against excessive draw. This device also hosts a thermally controlled fan to make sure that noise levels are kept to a minimum.

FEATURES

Various charge modes
Safe, flexible and reliable
Battery protection features including ? reverse, current limit, over voltage, voltage current limit and fuse protection
Compatible with all lead acid type batteries
Distribution board
Auxiliary input
Fault indicator

SPECIFICATIONS

Output current 35 Amps
Battery current limit 15A (+/-1A)
Battery current limit (Genius +HA) 30A (+/-1A)
Input voltage 240VAC, 50Hz
Efficiency >90% (full load and 240Vac input)
Operating temperature 0°C to 50°C
Dimensions 316mm x 179mm x 87mm
Weight 4kg
